This board is based on a standard breadboard layout which makes it easy to transfer your designs from a breadboard to a
more permanent form. It can be stacked with other full size or half size protostack boards.
 |
Similar layout to breadboard
This board is based on a standard breadboard with a few improvements.
- Power busses are pre routed on the board
- Power busses go from edge to edge and do not have any gaps
- Power busses are available in gap were Dil components usually sit. This provides more flexibility for component placement
and allows for more options for connecting power to components.
|
 |

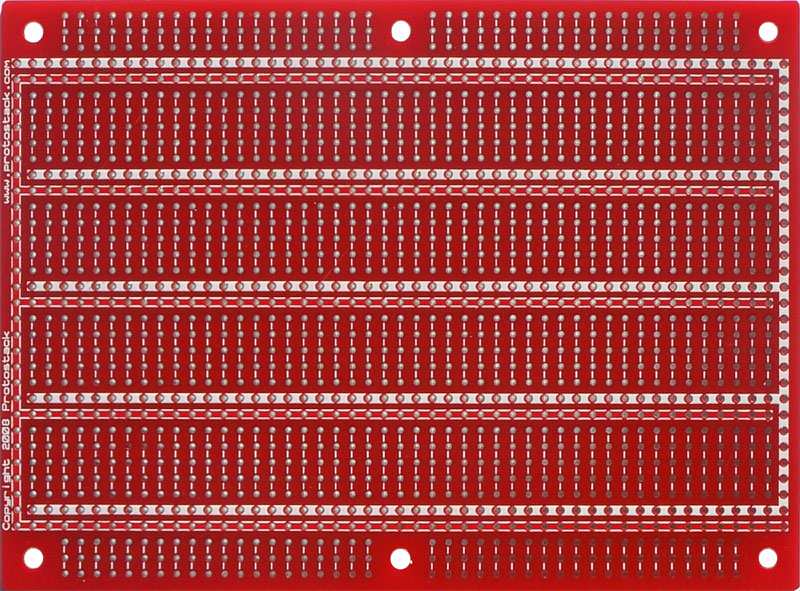

Screen Printing on topside
Screen printing on the board top clearly shows power busses and connection points. |
 |
Connection strips on top and bottom edges
All Protostack prototyping boards have sets of 3 connected pads on the top and bottom edges. These are used to interface each
board with the adjoining board above/below or to interace the board with an external system. |
 |
Standard protostack form factor and mounting holes
Protostack full size boards have a standard size and 6 mounting holes on the top and bottom edges. This allow the board
to be stacked with other full or half size boards using hexagonal spacers. |
 |

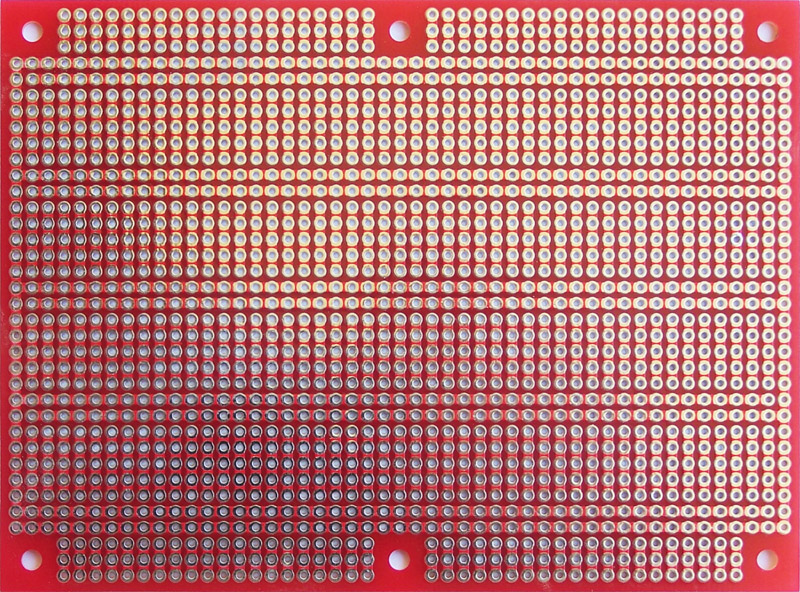

Immersion Tin Pad Treatment
This is a premium lead free treatment which protects the copper tracks from oxidation
and make it easier to solder. |
 |
Solder Mask/Resist
On all board areas except the solder pads a polymer based mask is applied. This is a common practise on commercial PCBs but is less common on prototyping boards. The solder resist prevents bridging between tracks and make soldering easier. |
 |
Quality FR4 Board Material
We use quality FR4 fibreglass board material unlike the paper based phenolic material that is found in many prototyping boards.
Fibreglass reinforced substrates have a much higher strength that paper reinforced boards and are more resistant to cracking or breaking.
|
