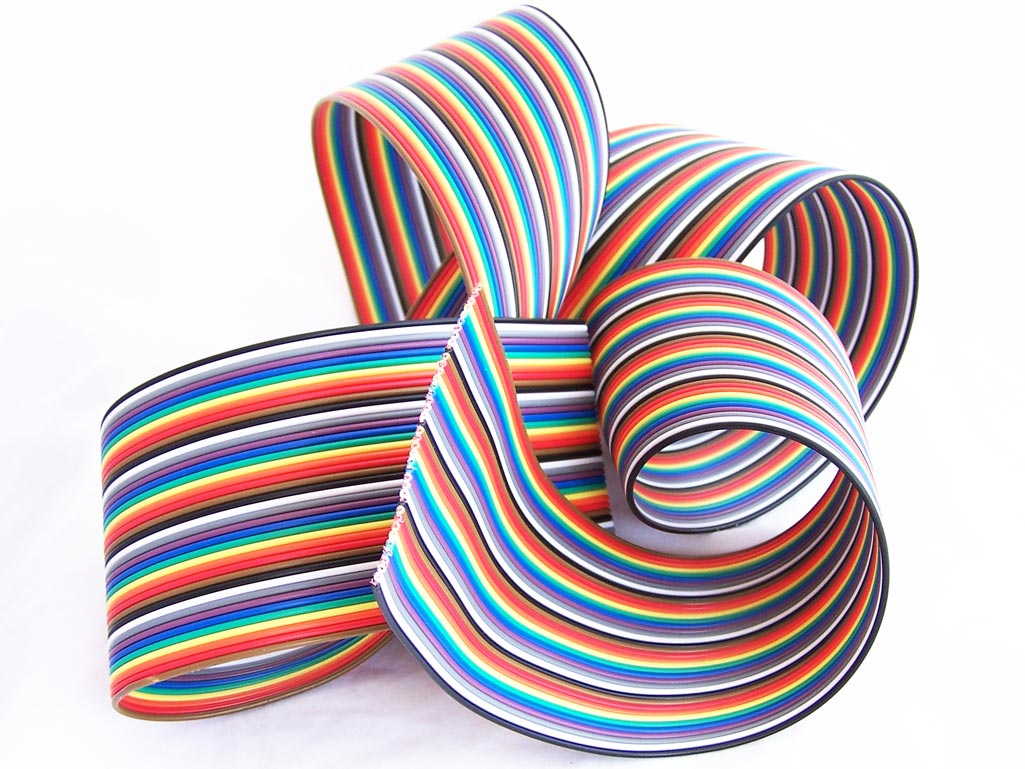

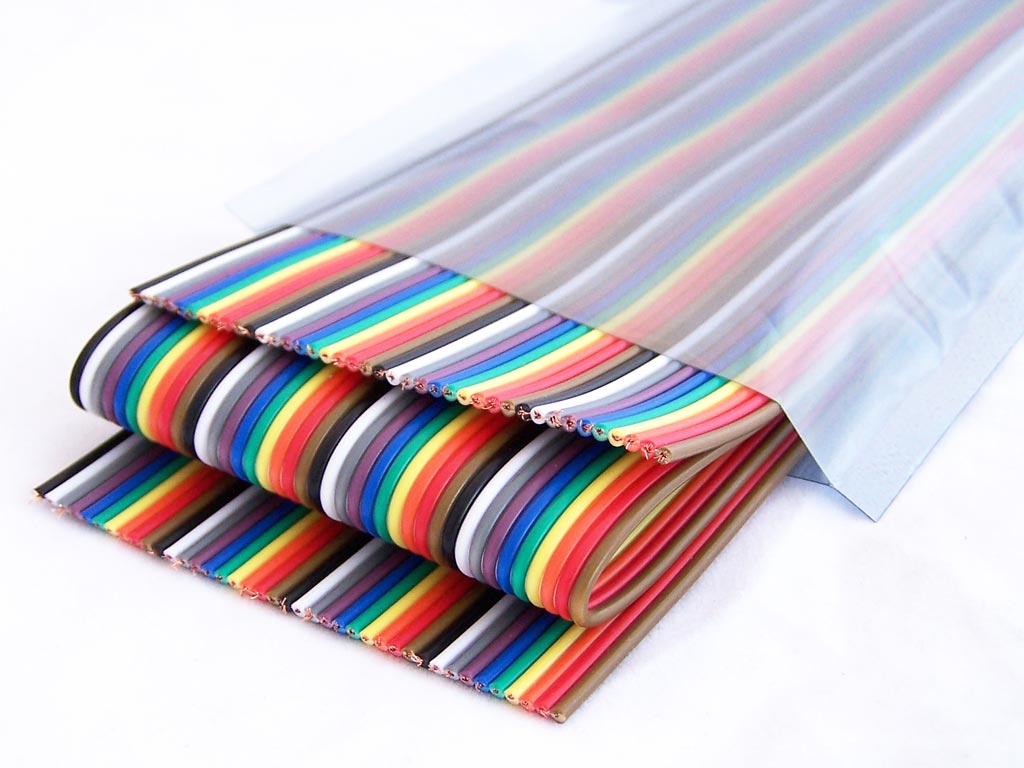

These are the cables that we use on our 200mm Female to Female Jumpers. They are quite handy for making custom cables and work well with Polarized Headers. Just split off the number of wires you need and away you go. They come in a handy pack with a 1 metre pre cut length.
Specifications
| Number of conductors: | 40 |
| Conductor Pitch: | 1.4mm |
| Conductor Material: | Copper |
| Insulation Material: | PVC |
| Conductor Gauge: | 24 AWG (12 x 0.15mm) |

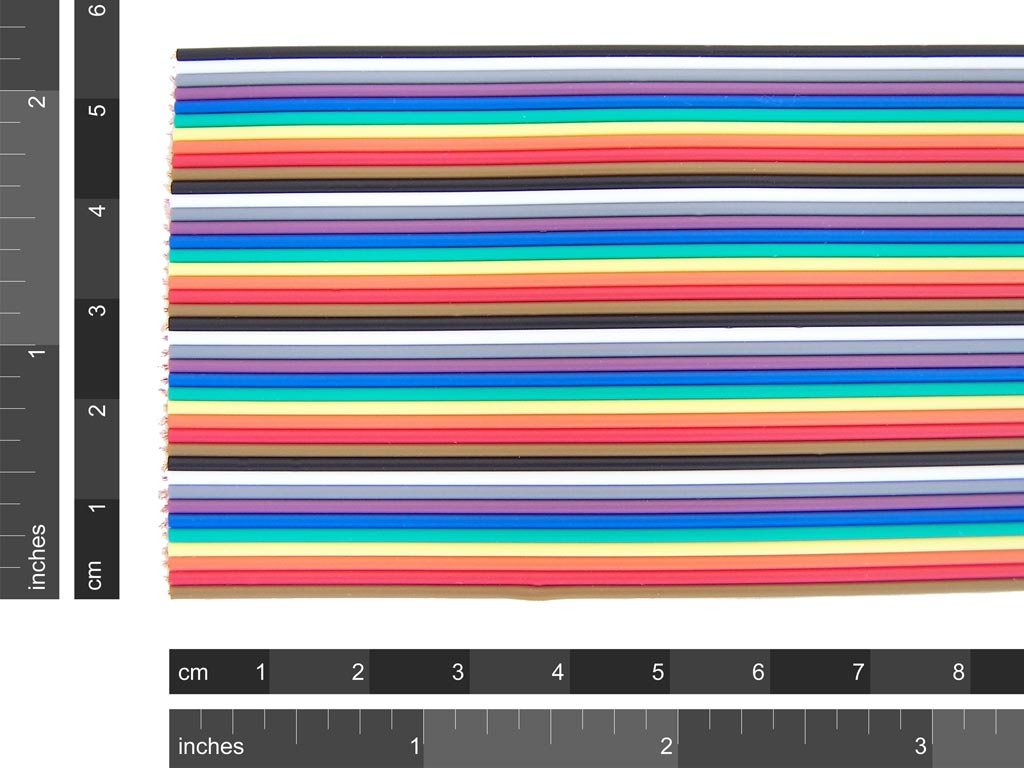

| Ribbon Width: | 56mm |
| Ribbon Length: | 1m |
| Voltage Rating: | 300V |
| Capacitance core/core: | 50 pF/m |
| Current rating at 25°C: | 2A |
| Maximum Operating Temperature: | 70°C |
| Maximum Conductor Resistance: | 87.2 Ω/km |
| Minimum Insulation Resistance: | 90 MΩ/km |
