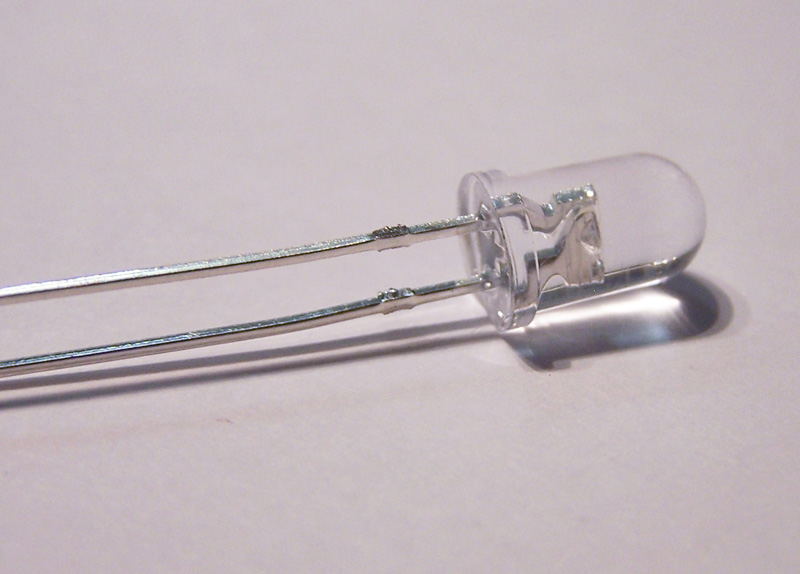

LED 2000mcd 5mm UV

LED 2000mcd 5mm UV

  • Model: LE-5M-UV2K
  • Shipping Weight: 1g
  • 654 Units in Stock
  • Manufactured by: Generic


Buy more, pay less


These are a high output Ultra Violet LED with peak wavelength between 390 and 395 nm. That wavelenth puts most of the output in the UVA (blacklight) zone with a small amount of spillage into the visible spectrum.

Peak Wave Length (nm) :390~395
Forward Voltage (V):3.2 ~ 3.8
Reverse Current (uA):<=30
Luminous Intensity Typ Iv (mcd):2000
Life Rating:100,000 Hours
Viewing Angle:20 ~ 25 Degree
Max Power Dissipation:80mw
Max Continuous Forward Current:30mA
Max Peak Forward Current:75mA
Reverse Voltage:5~6V
Lead Soldering Temperature:240°C (<5Sec)
Operating Temperature Range:-25°C ~ +85°C
