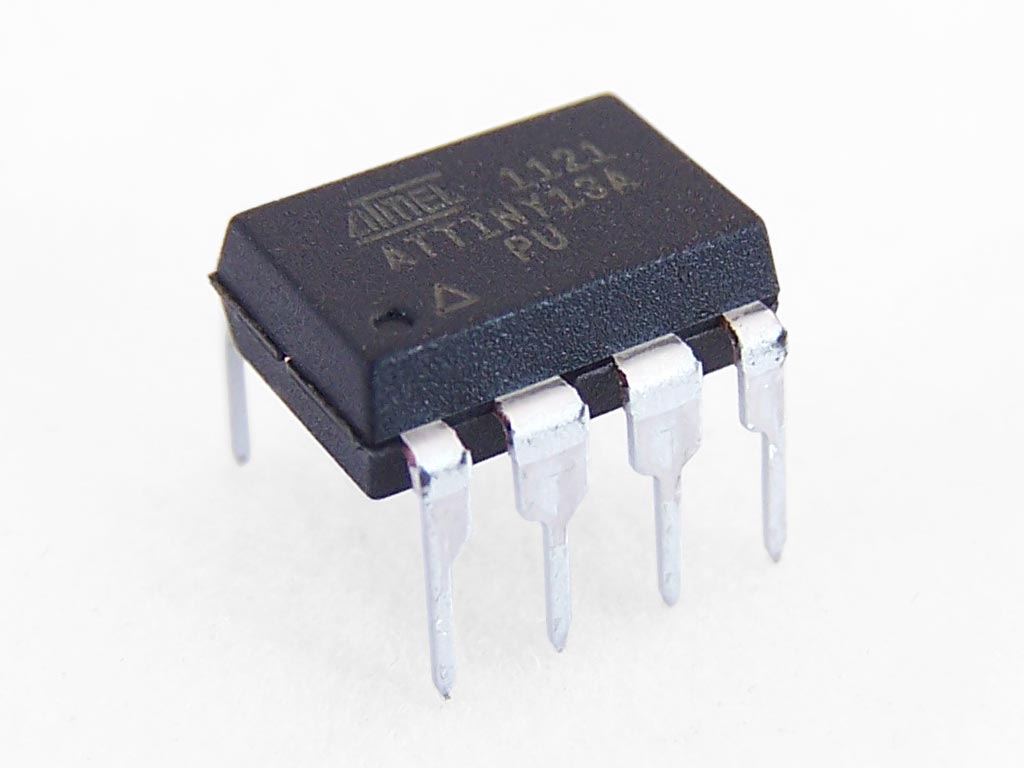

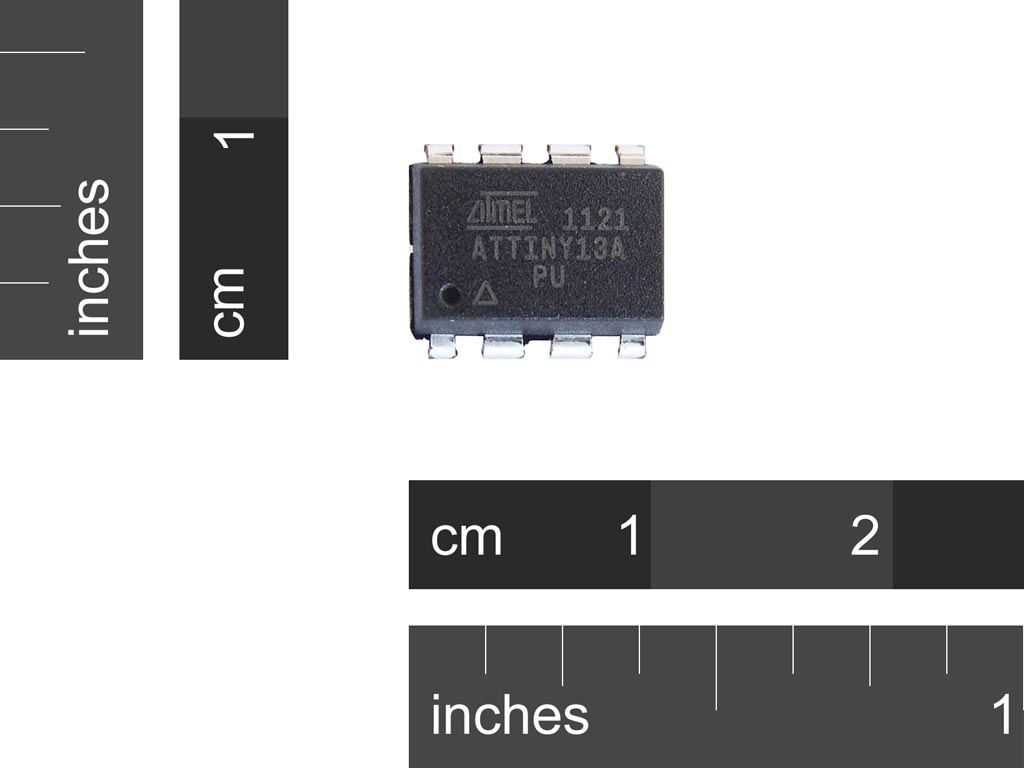

ATTINY13A-PU ATMEL 8 Bit 1K AVR Microcontroller

ATTINY13A-PU ATMEL 8 Bit 1K AVR Microcontroller

  • Model: IC-ATTINY13A-PU
  • Shipping Weight: 1g
  • 347 Units in Stock
  • Manufactured by: ATMEL
  • ATtiny13A Datasheet

$2.20

Buy more, pay less
1-9
$2.20
10+
$1.98

Quantity:

As the name suggests, this is a tiny microcontroller with just 8 pins, 1K Flash and 64 Bytes RAM. It is based on the AVR® 8 bit enhanced RISC architecture and achieves a speed of almost 20 MIPS at 20MHz by executing most instructions in a single clock cycle. This allows system designers to balance power consumption with processing speed.

Features
  • AVR® 8-Bit Microcontroller with high performance and low power usage
  • Advanced AVR RISC Architecture
    • 32 x 8 Working Registers
    • 120 Powerful Instructions Most executing in a Single Clock Cycle
    • Up to 20 MIPS at 20 MHz
  • Memory
    • 1K Bytes of Flash Memory which is self programmable
      • In System Programmable (ISP) via SPI Port
    • 64 Bytes EEPROM
    • 64 Bytes SRAM
  • Data Retention and Security
    • 10,000 Flash Write/Erase Cycles
    • 100,000 EEPROM Write/Erase Cycles
    • Retains data for 20 Years at 85°C and 100 Years at 25°C
    • Programming Lock available for Flash and EEPROM
  • I/O and Peripheral Features
    • 6 I/O lines
    • External and Internal Interrupt Sources
    • 1 x 8-bit Timer/Counter with 2 PWM Channels
    • 4-channel, 10-bit Analogue to Digital Converter with Internal Voltage Reference
    • Internal Analogue Comparator
    • Programmable Watchdog Timer with Internal Oscillator
  • Additional Features
    • debugWIRE Debug System
    • Modes include: Low Power Idle, ADC Noise Reduction and Power-down
    • Enhanced Power-on Reset Circuit
    • Programmable Brown-out Detection Circuit with Software Disable Function
    • Internal Calibrated Oscillator
  • Packaging

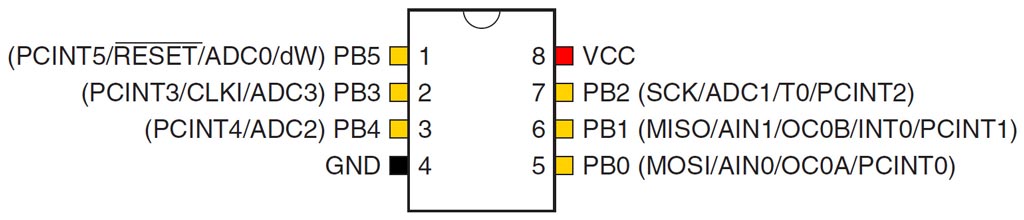

    • 8 pin PDIP
  • Electrical Characteristics
    • 1.8 - 5.5V Operating Voltage
    • Active Mode: 190 μA power consumption at 1.8 V and 1 MHz
    • Idle Mode: 24 μA power consumption at 1.8 V and 1 MHz
  • Operating Speeds
    • 0 to 4 MHz @ 1.8 to 5.5V
    • 0 to 10 MHz @ 2.7 to 5.5V
    • 0 to 20 MHz @ 4.5 to 5.5V
  • Environmental Specifications
    • Operating Temperature: -55°C to +125°C
    • Storage Temperature: -65°C to +150°C
